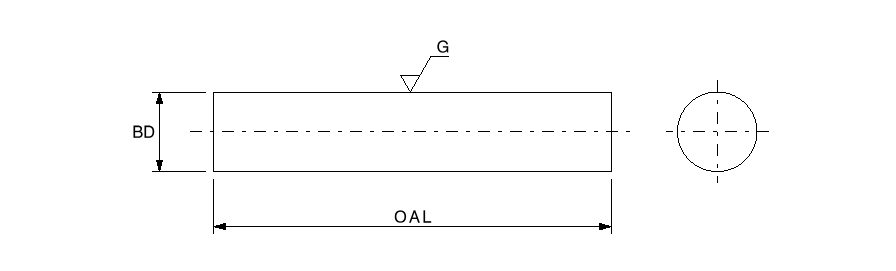

RG Type Long 330 : Solid Ground h6 Long 330


  DesignationBDBD Tol.OALOAL Tol.SFINOGNOHHTCSP GICATGIREMgiicGrade
  RG 020000 3300 2.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026584 1UF10
  RG 030000 3300 3.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026585 1UF10
  RG 040000 3300 4.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002021592 1UF10
  RG 050000 3300 5.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026586 1UF10
  RG 060000 3300 6.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007351883 1UF10
  RG 070000 3300 7.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026587 1UF10
  RG 080000 3300 8.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007351885 1UF10
  RG 090000 3300 9.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007355230 1UF10
  RG 100000 3300 10.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007351886 1UF10
  RG 110000 3300 11.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007355231 1UF10
  RG 120000 3300 12.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007351887 1UF10
  RG 130000 3300 13.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026588 1UF10
  RG 140000 3300 14.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007355233 1UF10
  RG 150000 3300 15.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026589 1UF10
  RG 160000 3300 16.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007352084 1UF10
  RG 170000 3300 17.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026590 1UF10
  RG 180000 3300 18.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007355234 1UF10
  RG 190000 3300 19.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026591 1UF10
  RG 200000 3300 20.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007352085 1UF10
  RG 250000 3300 25.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2007355236 1UF10
  RG 280000 3300 28.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026596 1UF10
  RG 320000 3300 32.00h6 330.00+6.0 Ground Y 0~None ~0 ~0.0000.2002026597 1UF10
For cutting speed recommendations, click on the required grade number related to specific item geometry
